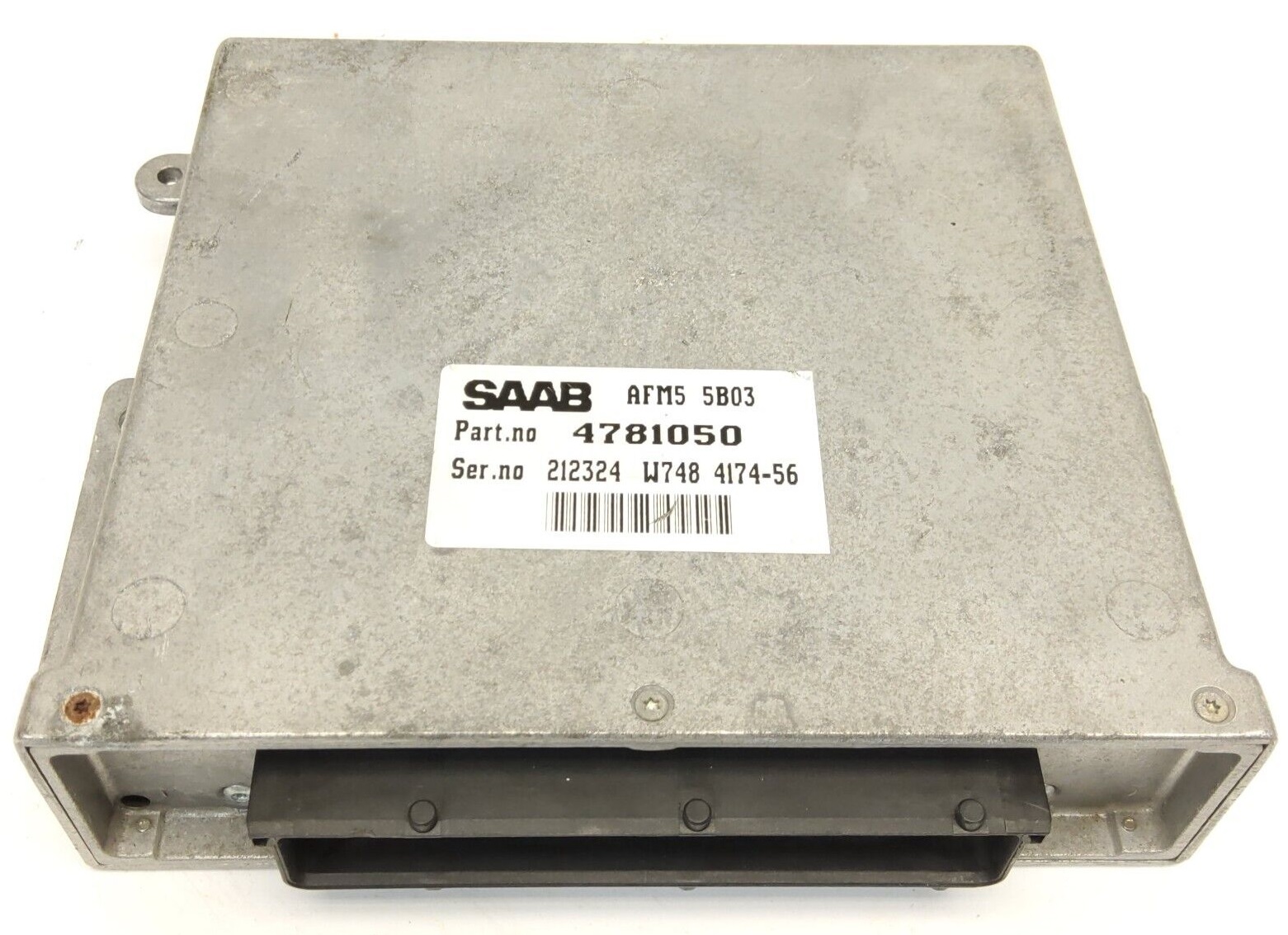

TRONIC 5
USED IN
- 2nd Generation Saab 900 (“NG900”) 1994-1998
- Saab 9000 1994-1998
- 1st Generation Saab 9-3 1998 – T5 (Except Viggen)
PROFESSIONAL TOOLS
-> Many professional tools cover these ecus such as Alientech Kess and CMDFlash and can be edited with WinOLS
PUBLIC TOOLS
Trionic CAN Flasher
The Trionic CAN Flasher is an Open Source tool used to read and write software in Trionic5, Trionic 7 and Trionic 8 based ECU’s. It can also read software out of Motronic 9.6 based ECU’s and write calibration.
The tool can also be used to modify parameters in the ECU, such as SAI, Convertible and High Output.
The Trionic CAN Flasher currently supports the following interfaces:
- Lawicel CANUSB
- CombiAdapter
- OBDLink SX (Not supported for ME9.6)
- Just4Tronic
- Kvaser HS
- J2534 (Beta)
A quick guide to the flasher can be found here. But, please read the documentation that comes with the flasher.
Supported ECU
- Tronic 5
- Tronic 7
- Tronic 8
- ME9.6
Bdmtool - > FLASHING
The Bdmtool can be used to read and write the flash of Trionic 5, 7 and 8 ECUs.
The Bdmtool currently supports the following interfaces:
- CombiAdapter
- Usbbdm
- Usbbdm mk2
T5 CAN Flasher II
The T5 CAN Flasher II is an Open Source tool used to read and write software in Trionic 5 based ECU’s. It has a clean informative User Interface that shows rich information about your ECU and BIN file.
Easy selection of CAN adapter
- Lawicel
- Combi
- Mictronics
- Just4Trionic
- Kvaser HS
Remembers your selection for next time.
Rigorous checking of all CAN bus transfers and FLASH update progress to give you greater confidence that your FLASH actually updated.
- If it didn’t you are told about the failure and have the option to try to recover your ECU by retrying your update.
- Don’t close T5 CAN Flasher or disconnect power to your ECU otherwise you won’t be able to try to recover your ECU and BDM recovery will be your only option.
Uses a new version of MyBooty which works with more types of replacement FLASH chips:
- Atmel AT29C010A
- AT29C512 (T5.2)
- AMIC 29010L
- ST M29F010
- Microchip SST39SF010A
- AMD 29F010 chips
- Original AMD/Intel/CSI 28F010 (28F512 in T5.2 ECUs).
Can ‘convert’ a T5.5 ECU for use as a T5.2 ECU (and back again)
Update a T5.5 ECU with T5.5 a ‘standard’ 128 kB T5.2 BIN file without having to create a double T5.2 BIN first.
Reading (DUMPing) a ‘converted’ T5.5 ECU produces a standard 128 kB T5.2 BIN
System Requirements A PC running Windows XP, Windows Vista, Windows 7, Windows 8.1 or Windows 10.
Microsoft .NET 4
T5Suite II (Open source map editing)
The T5Suite II is an Open Source tool used to tune Trionic 5 based ECU’s.
With the T5Suite II it is possible to tune how the software behaves to increase the performance of the car and adjust the software for hardware modifications, such a high performance injectors.
The T5Suite II also supports Online Tuning view and can be used analyze injection through it’s Fuel Injection Timing Viewer.
System Requirements
A PC running Windows XP, Windows Vista, Windows 7, Windows 8.1 or Windows 10.
Microsoft .NET 4.0
Administrator rights
